# Extension catalog and registry
> Where operators browse extensions, how agents install and auto-update from the catalog, the registry API, and how submission works.
The catalog is live in Mission Control's **Extensions** tab and on altnautica.com/extensions, and agents check it daily for updates. Third-party submission is not open, and there is no `ados plugin search`.
## Where the catalog appears

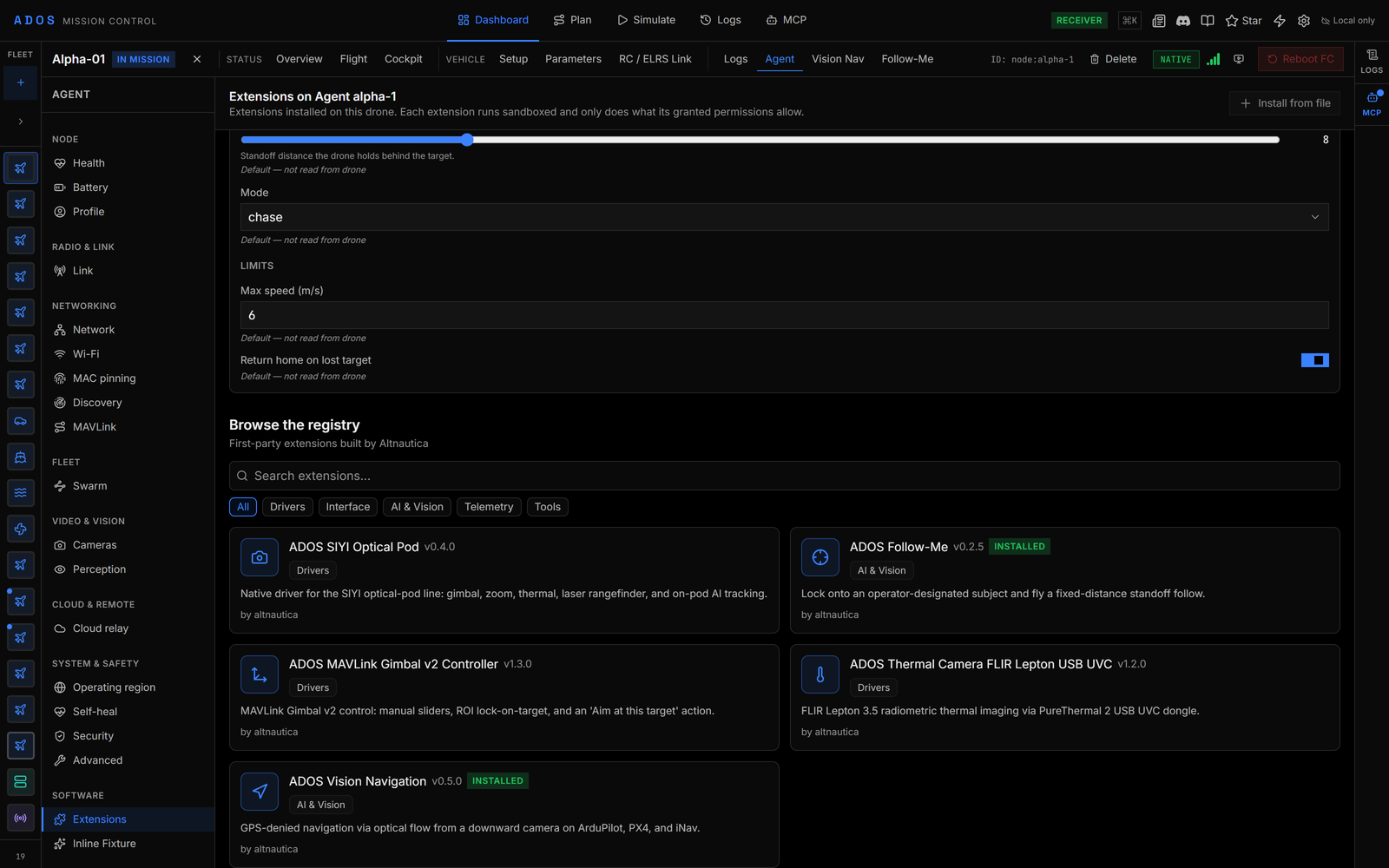

* **Mission Control.** A node's **Extensions** tab shows a searchable grid of catalog extensions with category filters (drivers, ui, ai, telemetry, tools) and an installed marker. **Install** on a card hands the archive URL and its sha256 pin to the agent (see [URL install](/developers/distribution-url-install)).
* **The agent.** Each agent ships a bundled first-party catalog, served at `GET /api/v1/plugins/catalog` and shown in the agent dashboard.
* **The website.** altnautica.com/extensions lists published extensions.
## Install by id
```bash theme={"theme":{"light":"github-light","dark":"github-dark"}}
ados plugin install com.altnautica.mavlink-gimbal-v2
ados plugin info com.altnautica.mavlink-gimbal-v2
```
`ados plugin install ` installs a built-in plugin or a first-party catalog entry by id, at the catalog's version. There is no `@version` syntax. `ados plugin info ` prints the manifest summary and runtime state.
## Automatic updates
Once a day the agent compares every enabled install with the newest version the registry publishes:
| Outcome | When |
| - | - |
| Silent install | Patch or minor bump, unchanged permissions and code surface, still-supported board, same signer, not pinned, auto-update on. The new archive must be pinned by sha256 and passes every install check; a refused archive rolls back to the installed version. |
| Notify | Major bump, permission change, change to what the plugin can run (risk, services, spawn allowlist, binaries, payloads), a dropped board, or a different signer. The operator gets an `update_available` notice; a signer change needs a remove and a fresh install. |
| Skipped | Pinned, auto-update off, nothing newer, or no registry row. |
| Failed | Registry, download, archive, install or enable error, recorded on the install and retried at the next daily check. |
The whole cycle is deferred while the vehicle counts as armed (unknown or stale state counts as armed). Control it per plugin:
```bash theme={"theme":{"light":"github-light","dark":"github-dark"}}
ados plugin pin com.example.my-plugin 1.2.0
ados plugin unpin com.example.my-plugin
ados plugin auto-update com.example.my-plugin off
```
The same daily cycle fetches the registry's revocation list and merges it into the agent's local list; see [Revocation and incidents](/developers/revocation-and-incidents).
## Registry API
The registry is served from the Convex backend's HTTP routes:
| Route | Purpose |
| - | - |
| `GET /v1/plugins` | List catalog entries. Query: `category`, `license`, `signed_only`, `verified_only`, `q`, `limit`. |
| `GET /v1/plugins/:id` | One plugin and its versions. |
| `GET /v1/plugins/:id/:version` | One version. |
| `GET /v1/plugins/:id/:version/download` | 302 redirect to the archive. |
| `GET /v1/revoked.json` | Revoked signer keys and plugin versions. |
| `POST /v1/plugins/submit` | Submit a signed archive (see below). |
`/v1/revoked.json` returns:
```json theme={"theme":{"light":"github-light","dark":"github-dark"}}
{
"signer_keys": ["example-2025-X"],
"plugin_versions": ["com.example.my-plugin@1.0.3"],
"generated_at": 1767225600000
}
```
A self-hosted Convex backend serves its own catalog; see [Self-hosting](/developers/self-hosting/overview).
## Submit a plugin
Third-party submission is not open. This section describes the endpoint as it ships.
`POST /v1/plugins/submit` takes a `multipart/form-data` body and a bearer token that resolves to a registry user. Required fields: `archive`, `plugin_id`, `version`, `category`, `manifest_yaml`, `signature`, `signer_key_id`, `payload_hash` and `agent_min_version`. Optional: `archive_sha256`, `name`, `description`, `license`, `homepage_url`, `repo_url`, `agent_max_version`, `gcs_min_version`. `category` must be one of `drivers`, `ui`, `ai`, `telemetry` or `tools`; anything else returns 400.
`scripts/submit.sh` in ADOSExtensions derives every required field from a signed archive and sends it:
```bash theme={"theme":{"light":"github-light","dark":"github-dark"}}
ADOS_REGISTRY_URL=https://cloud.example.com \
ADOS_REGISTRY_TOKEN= \
./scripts/submit.sh extensions/my-plugin/dist/com.example.my-plugin-1.0.0.signed.adosplug \
--category drivers --repo-url https://github.com/acme/acme-extensions
```
The equivalent `curl`:
```bash theme={"theme":{"light":"github-light","dark":"github-dark"}}
curl -X POST https://cloud.example.com/v1/plugins/submit \
-H "Authorization: Bearer " \
-F archive=@com.example.my-plugin-1.0.0.signed.adosplug \
-F plugin_id=com.example.my-plugin \
-F version=1.0.0 \
-F category=drivers \
-F manifest_yaml=@manifest.yaml \
-F signature= \
-F signer_key_id=acme-2026-A \
-F payload_hash= \
-F agent_min_version=0.100.0 \
-F license=GPL-3.0-or-later
```
The manifest fields the registry reads are top-level: `id`, `license`, `homepage`.
### Review
The registry scans the first 256 KiB of the archive for a short list of dangerous patterns (`eval(`, `exec(`, `__import__(`, `subprocess` calls, `os.system(`) and scores it at 100 minus 20 per finding. Run [`ados plugin lint`](/developers/linting) locally for the fuller check.
| Status | Meaning |
| - | - |
| `pending` | Clean scan (score 80 or more, no findings) and an OSS licence. Ready for review. |
| `queued_for_review` | Anything else. Queued for closer review. |
| `approved` | Published by the registry operator. |
| `rejected` | Declined by the registry operator. |
Every submission waits for the registry operator; nothing auto-publishes. The registry stores your signature as submitted; it is verified on each agent at install against that agent's trusted keys. The verified-publisher badge is set by the registry operator. To pull a version, contact the registry operator.
## Next steps
Revoke a signer, an archive or a release.
Licences and distribution channels.
