What You Will Build

By the end of this page, you will have ADOS Mission Control running in your browser with 5 simulated drones. You can explore the dashboard, plan missions, try the configuration panels, and fly a simulated drone with your keyboard or gamepad. No hardware needed.

​
Prerequisites

You need:
  • Node.js 18+ (LTS recommended). Check with node --version
  • npm 9+ (ships with Node.js). Check with npm --version
  • Git. Check with git --version
  • A modern browser: Chrome, Edge, or Firefox. Chrome recommended for WebSerial support.
Mission Control uses WebSerial for USB flight controller connections and WebUSB for firmware flashing. Both require a Chromium-based browser (Chrome, Edge, Brave). Firefox works for everything except USB features.

​
Option A: Demo Mode (No Clone Needed)

The fastest way to try ADOS Mission Control is the hosted demo at command.altnautica.com. It loads with 5 simulated drones, demo telemetry, and all features enabled. Nothing to install. Just open the link.

​
Option B: Run Locally

1

Clone the repository

git clone https://github.com/altnautica/ADOSMissionControl.git
cd ADOSMissionControl
2

Install dependencies

npm install
This takes 1-2 minutes. The project uses Next.js 16 with React 19 and about 60 dependencies.
3

Start in demo mode

npm run demo
This starts the development server on port 4000 with demo mode enabled. Open http://localhost:4000 in your browser.
Demo mode sets NEXT_PUBLIC_DEMO_MODE=true and populates the dashboard with 5 simulated drones showing live-updating telemetry. It requires no Convex backend, no SITL, and no hardware.
4

Explore the dashboard

You should see the main dashboard with 5 simulated drones. Each drone shows:
  • Attitude indicator (artificial horizon)
  • GPS coordinates and altitude
  • Battery voltage and percentage
  • Flight mode (Stabilize, Loiter, Auto, etc.)
  • Connection status
Mission Control dashboard showing 5 drone cards with telemetry data

​
Exploring the UI

With demo mode running, click through the main tabs to see what is available.

​

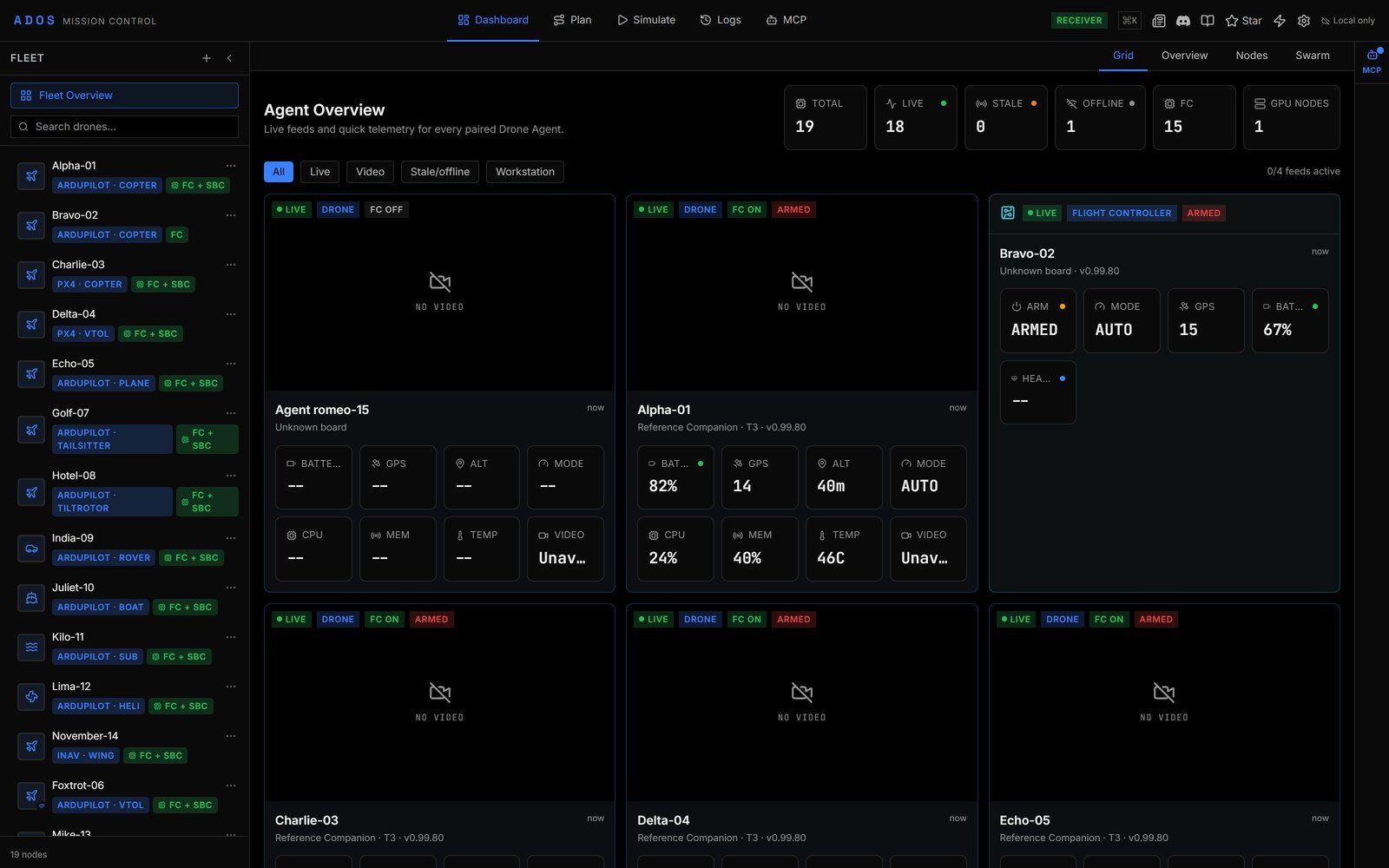

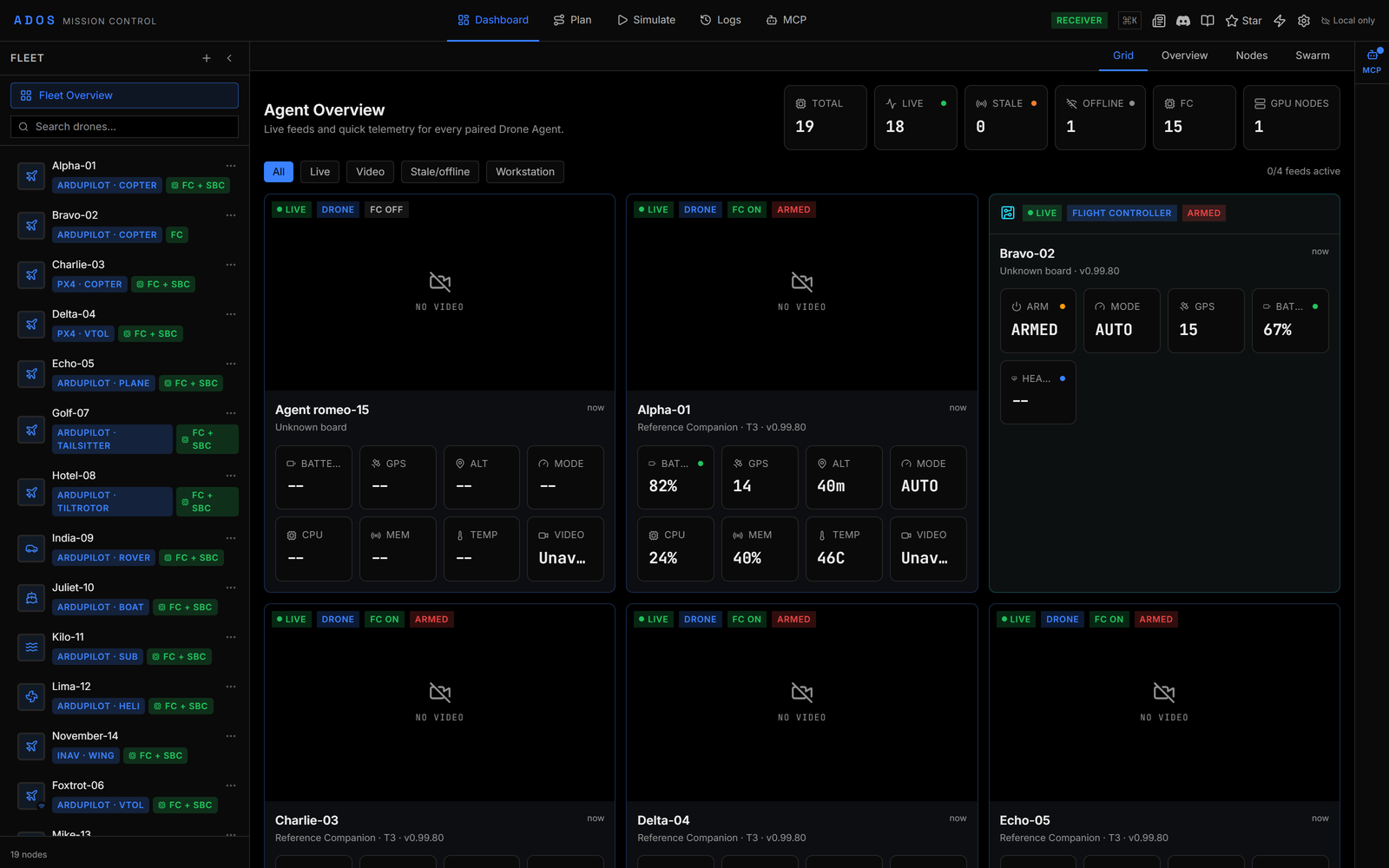

Dashboard

The home view. Shows all connected drones as cards. Click a drone card to select it and see its detail view.

​
Plan

The mission planning interface. You can:
  • Drop waypoints on the map by clicking
  • Use pattern generators (survey grid, corridor scan, spiral search, and more)
  • Set altitude, speed, and camera trigger parameters per waypoint
  • Draw geofences and set rally points
  • Import and export missions in multiple formats (QGC WPL, KML, CSV)
Mission planner showing a survey grid pattern with waypoints on a satellite map

​
Configure

36+ configuration panels for your flight controller. In demo mode, these show example values. With a real FC connected, you can read and write parameters. Key panels include:
PanelWhat It Does
FailsafeBattery, GCS, and RC loss behavior
PID TuningRate and stabilize PIDs with live response graph
PowerBattery monitor setup (voltage divider, amps per volt)
OSD EditorDrag-and-drop on-screen display layout (4 screens)
PortsSerial port protocol assignment (25+ protocols)
SensorsRangefinder, optical flow, airspeed, barometer config
GimbalMount type, axis limits, ROI targeting

​
Flight Control

Manual flight controls. This tab shows when a drone is selected. You can:
  • Arm and disarm
  • Change flight modes (25+ modes for ArduPilot)
  • Fly with a gamepad or HOTAS at 50Hz input rate
  • Fly with keyboard (WASD + arrow keys)
  • Set guided mode waypoints by clicking the map

​
Simulate

3D mission simulation. Upload a mission plan and watch it execute with terrain following, camera trigger markers, and timing estimates.

​
Connecting a Real Flight Controller

If you have an ArduPilot, PX4, or Betaflight flight controller on your desk, you can connect it right now.
1

Start in normal mode

Stop the demo server (Ctrl+C) and start normally:
npm run dev
Open http://localhost:4000.
2

Plug in your flight controller

Connect the FC to your laptop with a USB cable. Make sure it is powered (some FCs need a battery connected for USB to work, others do not).
3

Click Connect

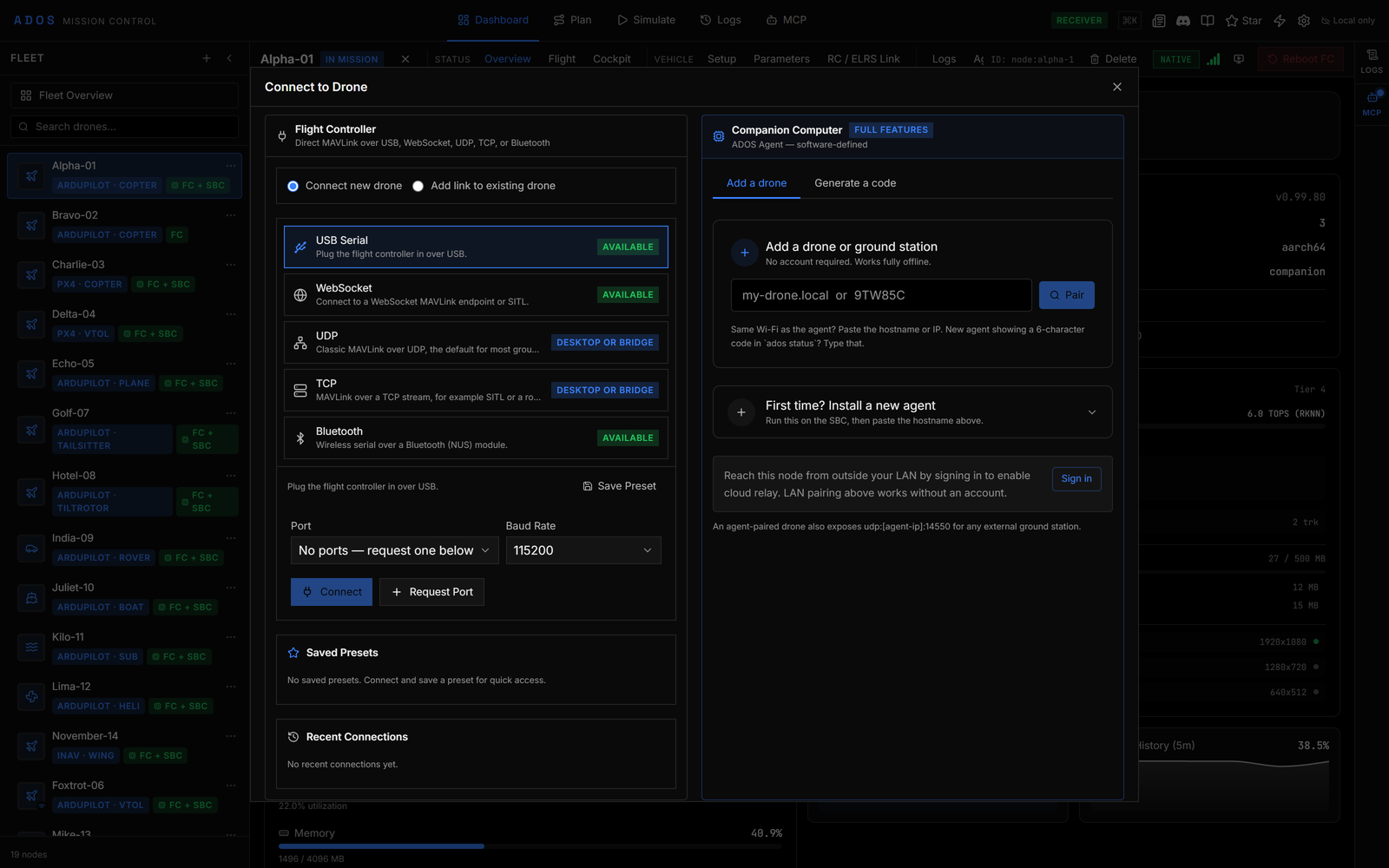

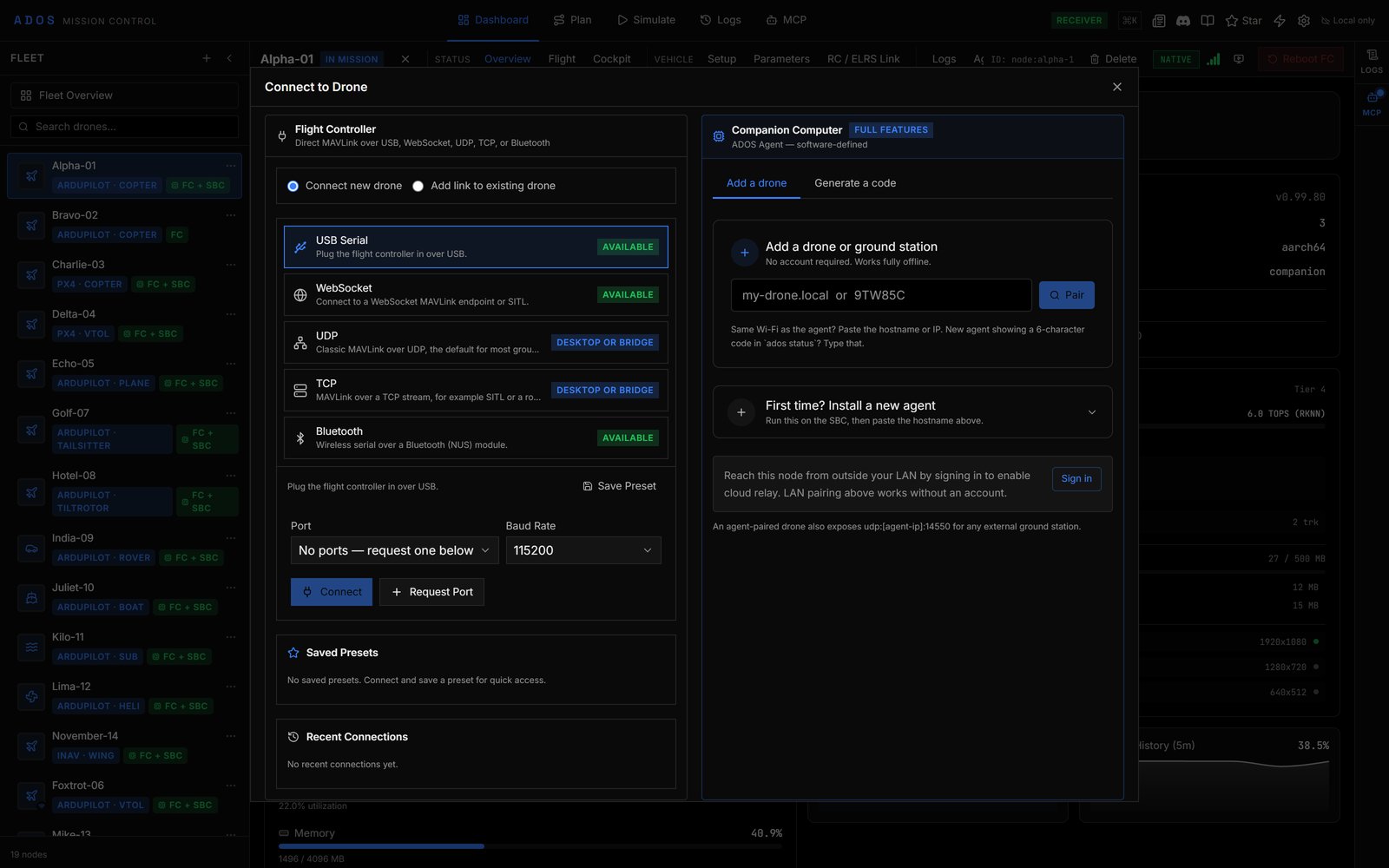

Click the Connect button in the top navigation bar. A browser dialog will appear listing available serial ports.
Browser serial port selection dialog with a flight controller listed
Select your flight controller and click Connect. Mission Control will:
  1. Open the serial port at the detected baud rate
  2. Send a MAVLink heartbeat
  3. Request autopilot version and capabilities
  4. Request data streams (attitude, GPS, battery, RC, sensors)
  5. Download the full parameter list
This takes 2-5 seconds.
4

Verify the connection

The top bar will show the firmware type (ArduPilot, PX4, or Betaflight), vehicle type (Copter, Plane, Rover, etc.), and firmware version. The dashboard card will show live telemetry.If connection fails, check:
  • Is the FC powered?
  • Is another application (Mission Planner, QGroundControl, Betaflight Configurator) holding the serial port?
  • Are you using Chrome, Edge, or another Chromium-based browser? Firefox does not support WebSerial.
WebSerial requires a secure context. If you are running locally on http://localhost:4000, it works. If you are accessing the GCS over a network, you need HTTPS. The hosted version at command.altnautica.com uses HTTPS.

​
Running with SITL

ADOS ships with a SITL (Software In The Loop) launcher that runs a full ArduPilot simulation with real physics. This is useful for testing mission planning, flight modes, and the full MAVLink stack without hardware.
1

Install ArduPilot SITL

Follow the ArduPilot SITL setup guide to build ArduPilot from source. The SITL binary lands in ~/.ardupilot/.
2

Start the SITL bridge

cd ADOSMissionControl/tools/sitl
npm install
npm start
This launches ArduPilot SITL (a real autopilot running on your computer with simulated physics) and bridges its TCP output to a WebSocket that Mission Control can connect to.
3

Connect from Mission Control

In Mission Control, click Connect and choose the SITL WebSocket option. You will see a simulated ArduPilot copter with GPS, battery, and full parameter set.You can arm, take off, switch modes, upload missions, and fly. The physics simulation includes gravity, drag, wind, and motor response. It is the same simulation that ArduPilot developers use.

​
Running as a Desktop App

Mission Control can also run as an Electron desktop app. This gives you a standalone window with native serial port access (no WebSerial browser restrictions).
# Development mode
npm run desktop:dev

# Demo mode
npm run desktop:demo

# Build distributable
npm run desktop:build:mac   # macOS
npm run desktop:build       # All platforms
The desktop app is the same codebase with an Electron wrapper. It uses about 200MB on disk and 200-300MB of RAM.

​
Environment Variables

VariableDefaultPurpose
NEXT_PUBLIC_DEMO_MODEfalseEnable demo mode with 5 simulated drones
PORT4000Dev server port
NEXT_PUBLIC_CONVEX_URL(none)Convex backend URL for cloud features
NEXT_PUBLIC_MQTT_URL(none)MQTT broker URL for real-time telemetry
Cloud features (fleet management, cloud relay, community changelog) require a Convex backend. For local development and direct connections, no backend is needed.

​
Project Structure

A quick orientation of the codebase:
ADOSMissionControl/
├── src/
│   ├── app/              # Next.js App Router pages
│   ├── components/       # React components
│   ├── lib/
│   │   ├── protocol/     # MAVLink/MSP codec and adapters
│   │   ├── video/        # WebRTC client, transport cascade
│   │   └── mission/      # Mission file parsers, pattern generators
│   ├── stores/           # Zustand state stores (27 total)
│   └── hooks/            # Custom React hooks
├── convex/               # Convex backend (optional, for cloud features)
├── tools/
│   ├── sitl/             # ArduPilot SITL launcher + WebSocket bridge
│   ├── mqtt-bridge/      # MQTT-to-Convex bridge (Docker)
│   └── video-relay/      # RTSP-to-WebSocket relay (Docker)
├── electron/             # Electron desktop wrapper
└── public/               # Static assets

​
