Alpha stage. This guide is based on bench-level testing only. Some steps may change as we validate on real hardware. Check back once we ship a stable release.

What You Will Do

This guide walks you through planning an automated survey mission in ADOS Mission Control. You will define an area, generate a survey grid pattern, set flight parameters, upload the mission to your flight controller, execute it in Auto mode, and download logs afterward. By the end, your drone will have flown a complete survey pattern autonomously.

Prerequisites

  • Mission Control running and connected to your FC (see Quickstart)
  • A drone with GPS lock (3D Fix, 8+ satellites)
  • An ArduPilot or PX4 flight controller (mission planning requires MAVLink, not MSP)
  • A battery with at least 80% charge
  • An open outdoor area for the flight
You can plan missions without a connected FC. The planner works offline. Upload the mission when you are ready to fly.

Planning the Mission

1

Open the Plan tab

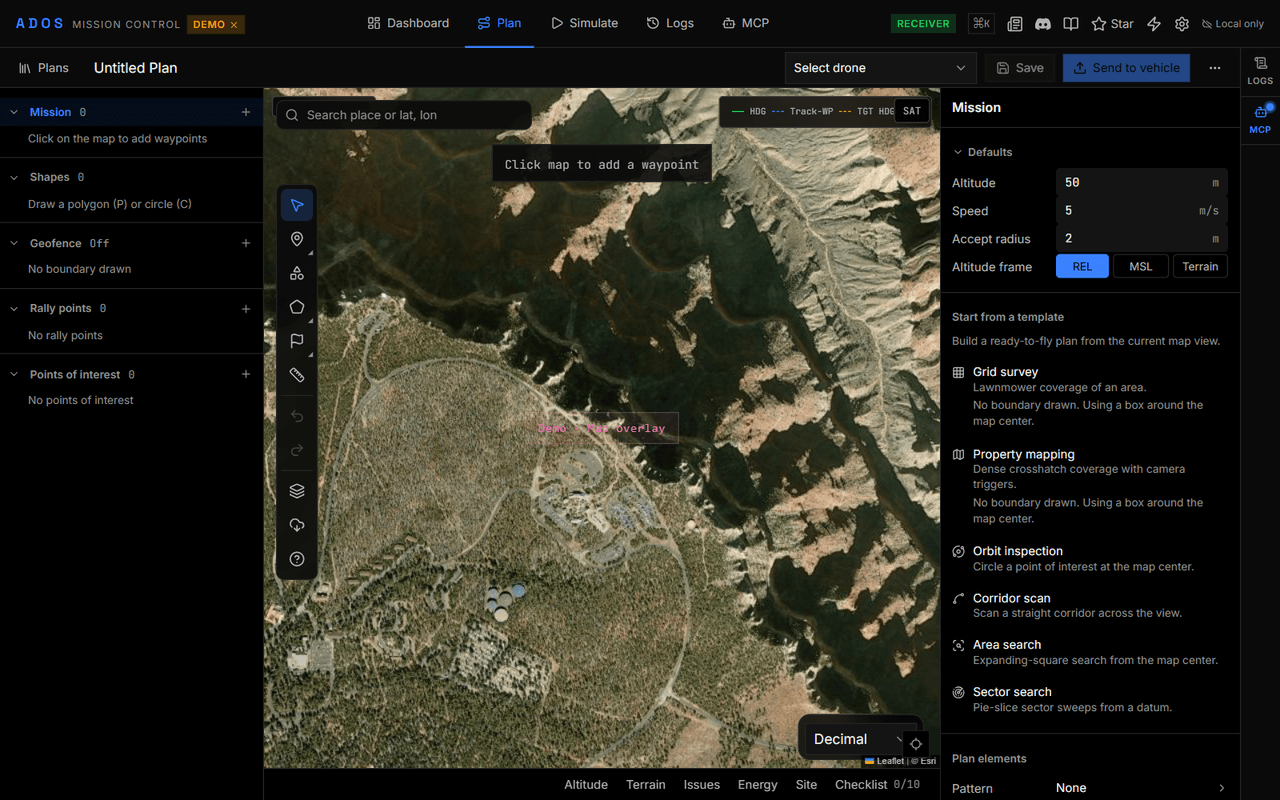

Click the Plan tab in the main navigation. You will see a map view with your current GPS position (if connected to a FC with GPS) or a default location.The left panel shows the mission tools: waypoint list, pattern generators, settings, and import/export.

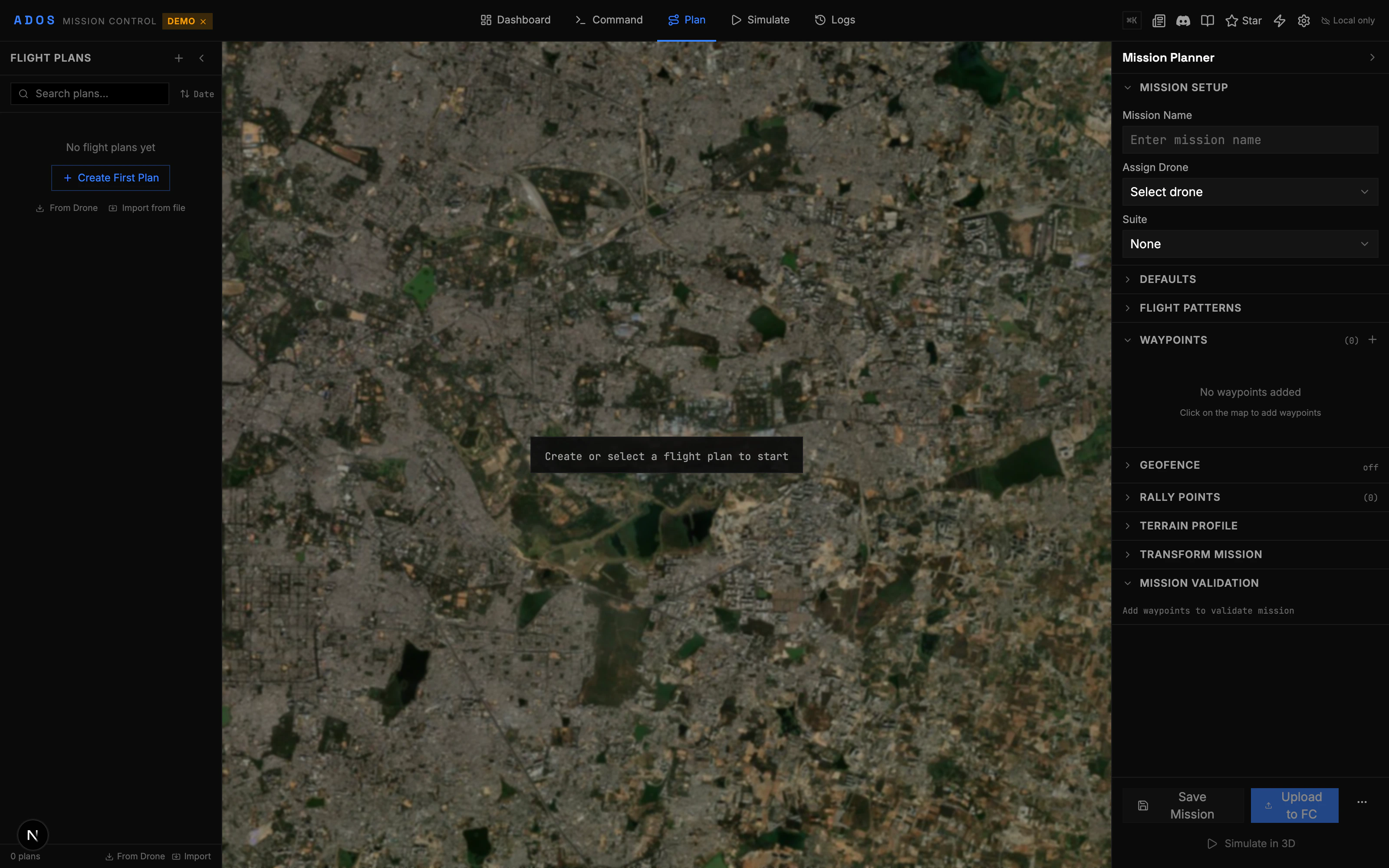

Mission planner showing a satellite map with the tools panel on the left
2

Define the survey area

You have two options:Option A: Draw on the map
  1. Click the Draw Polygon tool in the toolbar
  2. Click on the map to place polygon vertices around the area you want to survey
  3. Close the polygon by clicking the first vertex or double-clicking
Option B: Import a boundary
  1. Click Import in the tools panel
  2. Load a KML, GeoJSON, or CSV file with your survey boundary
  3. The polygon appears on the map
The polygon defines where the drone will fly. Make it slightly larger than your actual area of interest to account for camera overlap at the edges.
3

Generate the survey pattern

With the polygon selected, open the Pattern Generator panel and choose Survey Grid.The survey grid generator creates a lawnmower pattern that covers the entire polygon. Configure these settings:
SettingWhat It ControlsRecommended Start
AltitudeFlight height above ground50m for general mapping, 30m for detail
SpeedGround speed during survey legs5-8 m/s
Overlap (front)Image overlap along the flight direction75%
Overlap (side)Image overlap between adjacent legs65%
AngleGrid rotation angle0° (north-south legs) or auto-optimize
Camera triggerHow the camera firesDistance-based or time-based
Click Generate. The pattern appears on the map as a series of parallel waypoints.

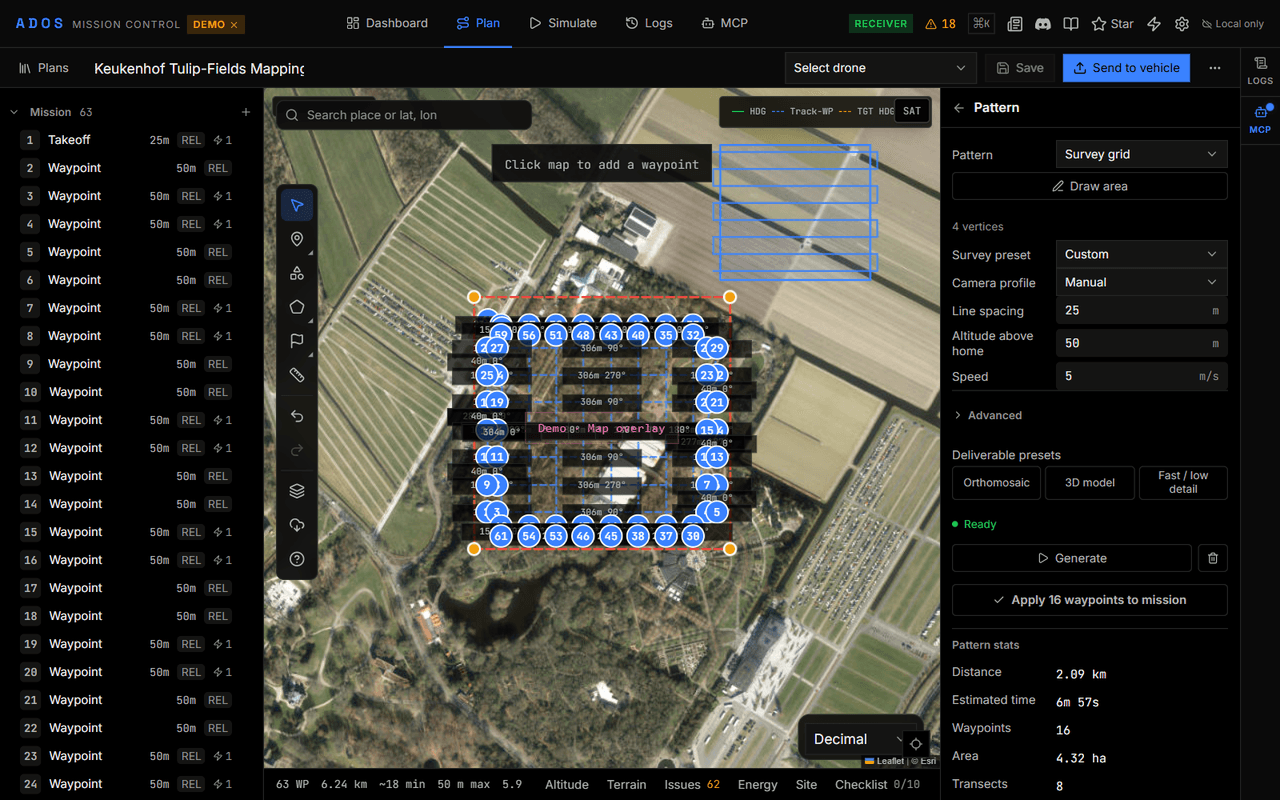

Map showing a survey grid pattern with parallel flight legs and waypoints over a polygon area
The auto-optimize angle option rotates the grid to minimize the number of turns. This saves battery and flight time. For rectangular fields, the optimal angle usually aligns with the longest edge.
4

Review the mission details

After generating the pattern, the tools panel shows:
  • Total waypoints: Number of mission items
  • Total distance: Flight path length in meters
  • Estimated time: Based on your speed setting
  • Leg count: Number of parallel survey legs
  • Photo count: Estimated images based on overlap and altitude
Scroll through the waypoint list to inspect individual points. Each waypoint shows:
  • Sequence number
  • Latitude/longitude
  • Altitude (relative to home or terrain)
  • Command type (NAV_WAYPOINT, DO_SET_CAM_TRIGG_DIST, etc.)
Click any waypoint in the list to highlight it on the map. Click a waypoint on the map to select it in the list.
5

Add takeoff and return-to-launch

A mission needs a takeoff command at the beginning and a return-to-launch (RTL) at the end.
  1. Click Add Takeoff at the top of the waypoint list. Set the takeoff altitude (typically the same as your survey altitude).
  2. Click Add RTL at the bottom of the list.
The complete mission sequence is now:
1. TAKEOFF to 50m
2-N. Survey waypoints (NAV_WAYPOINT + camera triggers)
N+1. RTL (return to launch and land)
6

Set geofence (optional but recommended)

A geofence defines a boundary the drone cannot cross. If the drone reaches the fence, the FC triggers a failsafe action (RTL, land, or brake).
  1. Click the Geofence tool
  2. Draw a polygon larger than your survey area (give 50-100m buffer)
  3. Set the maximum altitude (100m is a common default)
  4. Set the breach action (RTL recommended)
On ArduPilot, this uses the FENCE_ENABLE, FENCE_TYPE, and FENCE_ACTION parameters. Mission Control handles the parameter mapping automatically.
7

Set rally points (optional)

Rally points are alternate landing locations. If the drone triggers RTL and cannot reach home (wind, obstacles), it goes to the nearest rally point instead.
  1. Click the Rally Points tool
  2. Click on the map to place rally points at safe landing spots
  3. Set the altitude for each point (the drone approaches at this altitude before descending)
8

Validate the mission

Click Validate in the tools panel. The validator checks for:
  • Missing takeoff command
  • Missing RTL or land command
  • Waypoints outside the geofence
  • Altitude violations (too low, too high)
  • Speed violations
  • Duplicate waypoints
  • Distance between waypoints (too close or too far)
Errors appear in red. Warnings appear in yellow. Fix any errors before uploading. Warnings are advisory.

Uploading the Mission

1

Connect to the FC

Make sure your flight controller is connected (green status indicator in the top bar). The FC must be online for mission upload.
2

Upload

Click Upload Mission in the tools panel.Mission Control sends the mission items to the FC using the MAVLink mission protocol:
  1. Sends MISSION_COUNT with the total number of items
  2. FC requests each item with MISSION_REQUEST_INT
  3. GCS sends each MISSION_ITEM_INT
  4. FC sends MISSION_ACK when all items are received
A progress bar shows the upload. Typical upload time: 1-5 seconds depending on mission size and connection speed.
Mission Control uses MISSION_ITEM_INT (message 73) for all mission uploads. This is the modern format with integer latitude/longitude (1e7 scaling) for higher precision. Older MISSION_ITEM (message 39) is supported for downloads but not used for uploads.
3

Verify the upload

After upload, click Download Mission to read the mission back from the FC. Compare the downloaded mission with your plan. The waypoints, altitudes, and commands should match exactly.This step catches rare transmission errors. If anything looks wrong, re-upload.

Executing the Mission

1

Pre-flight checks

Run the same pre-flight checks from the Your First Flight guide:
  • GPS 3D Fix, 8+ satellites
  • Battery above 80%
  • Pre-arm messages clear
  • Geofence parameters set if you defined a geofence
  • Wind conditions acceptable for your drone
2

Arm in Stabilize or Loiter

Arm the drone in Stabilize or Loiter mode first. Do not arm directly in Auto mode for your first mission. This gives you a chance to take off manually and verify flight behavior before handing over to autonomy.Click Arm and confirm.
3

Take off manually

Take off to a safe hover altitude (3-5 meters). Verify the drone is stable and responsive.
4

Switch to Auto

Click the mode selector and choose Auto. The drone will immediately start flying toward the first waypoint.What happens:
  1. The drone climbs to the mission’s first waypoint altitude
  2. It flies to waypoint 1 (the takeoff point, already at altitude)
  3. It begins the survey pattern, flying leg by leg
  4. Camera triggers fire at the configured interval
  5. At the last waypoint, it executes the RTL command
  6. It flies back to the launch point and lands

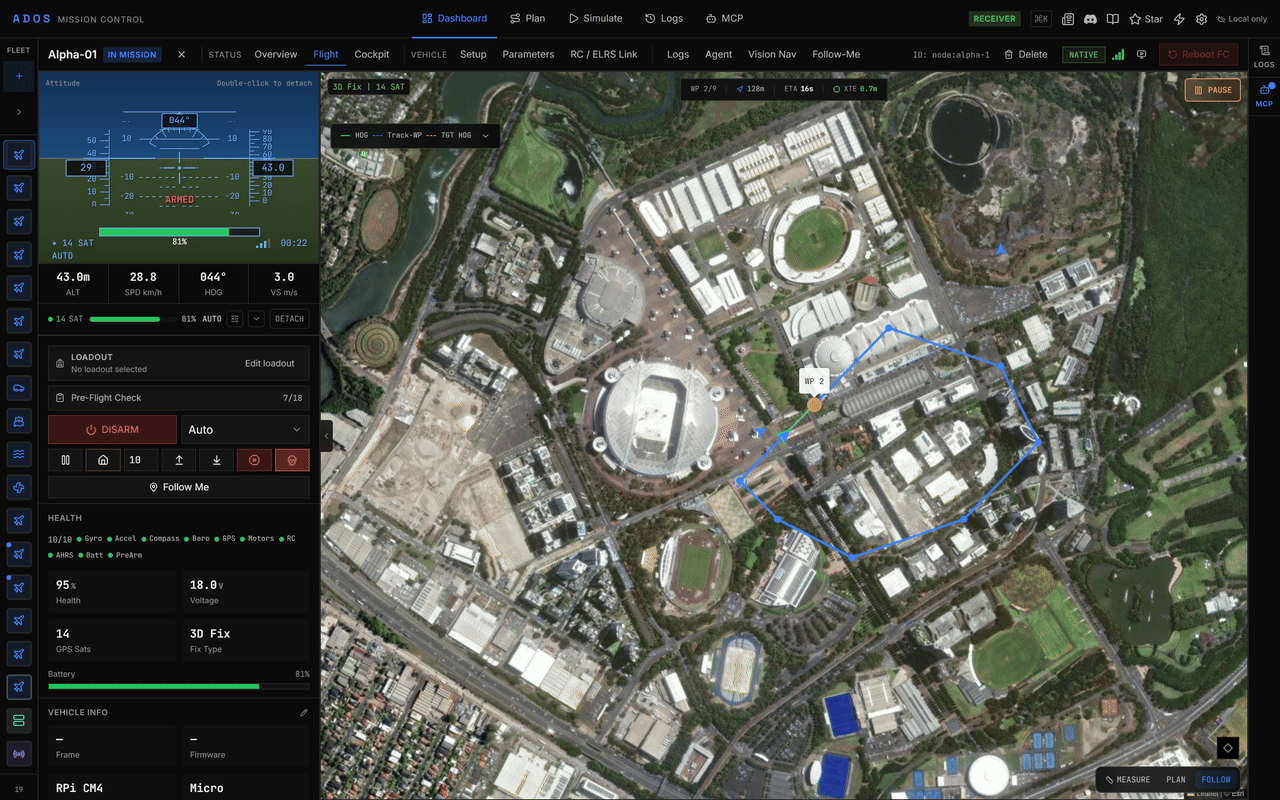

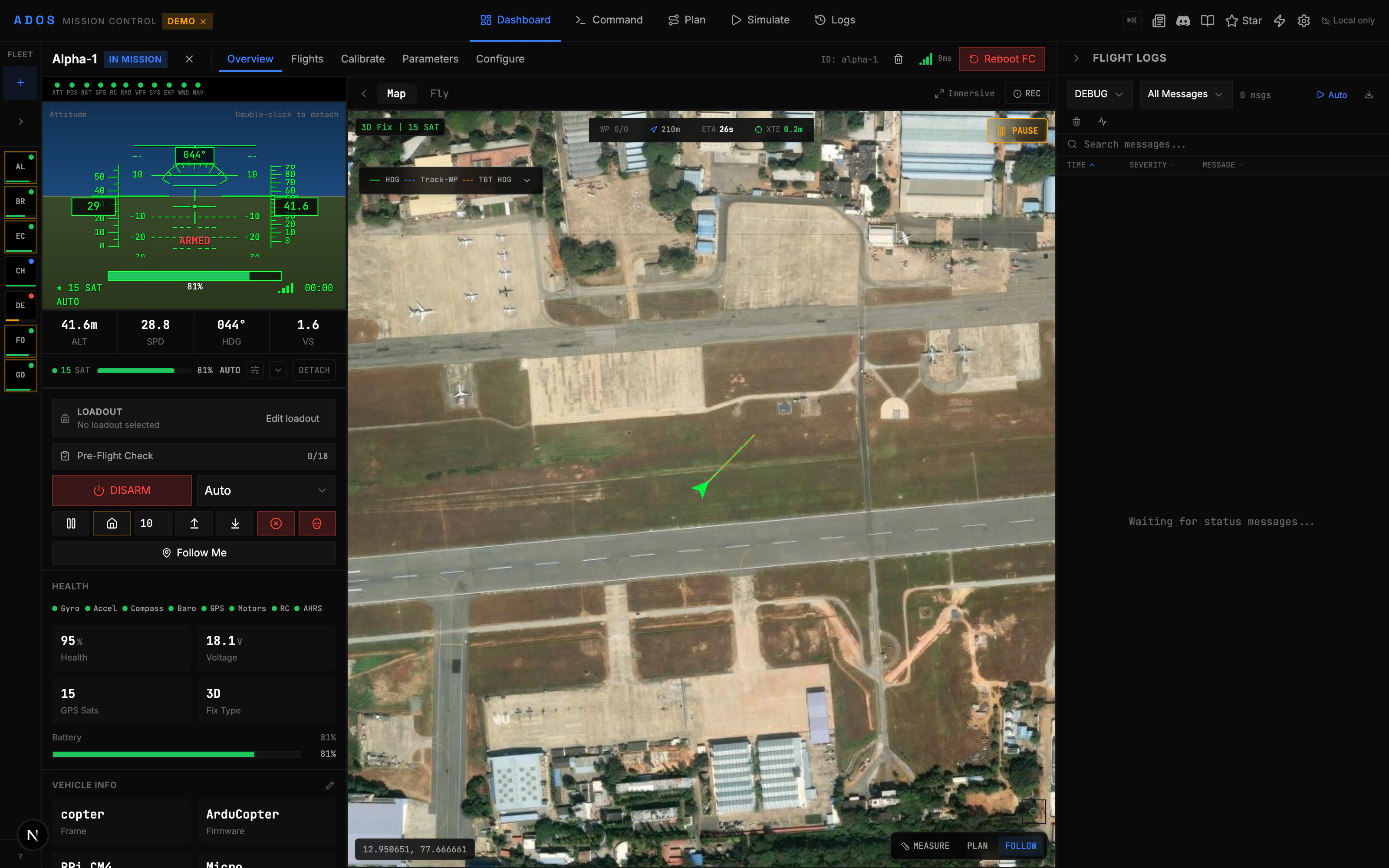

Map view showing completed survey legs in green and remaining legs in blue with the drone position marked
5

Monitor the flight

While the mission runs, watch:
  • Progress: The active waypoint is highlighted on the map. Completed legs change color.
  • Altitude: Verify the drone is holding the target altitude.
  • Battery: Watch voltage sag under load. If you see voltage dropping faster than expected, be ready to abort.
  • Ground speed: Should be close to your configured speed.
  • Camera triggers: The mission item count increments as camera commands execute.
Keep your finger on the mode switch. If anything goes wrong, switch to Loiter to stop, or RTL to bring it home.
6

After landing

The drone will auto-land at the launch point (RTL) and auto-disarm.If you need to abort mid-mission:
  • Switch to Loiter: Drone stops and holds position
  • Switch to RTL: Drone comes home
  • Switch to Land: Drone lands at current position
  • Click Disarm (emergency only, cuts motors immediately)
Only use emergency disarm (cutting motors) as an absolute last resort. The drone will fall from whatever altitude it is at. Use RTL or Land for controlled returns.

Other Pattern Types

The survey grid is one of seven pattern generators in Mission Control. Here are the others:
PatternUse CaseHow It Works
Survey GridArea mapping, photogrammetryParallel legs covering a polygon
Circular SurveyPoint-of-interest coverageConcentric circles around a center point
Corridor ScanRoad, pipeline, or river mappingParallel legs along a line/path
Search PatternSAR, lost object searchExpanding square or sector search
SpiralArea search from center outwardOutward spiral from a center point
CrosshatchHigh-overlap photogrammetryTwo perpendicular survey grids overlaid
PerimeterFence-line or boundary surveyFollows polygon edges at a set offset
Each pattern has its own configuration panel. The workflow is the same: define the area, configure parameters, generate, validate, upload.

Saving and Loading Missions

Save to File

Click Export to save your mission as:
  • QGC WPL 110: Standard MAVLink waypoint format. Compatible with QGroundControl, Mission Planner, and other GCS tools.
  • KML: Google Earth format. Good for sharing with non-drone people.
  • CSV: Spreadsheet format. One row per waypoint.

Load from File

Click Import to load a mission from any of the above formats. You can also import boundaries from KML or GeoJSON for the polygon tools.

Mission Library

If you have cloud features enabled (Convex backend), missions are saved to the mission library in the cloud. You can browse, duplicate, and re-use past missions. This is useful for recurring survey jobs where you fly the same pattern regularly.

Simulation

Before flying a real mission, you can simulate it.
  1. Go to the Simulate tab
  2. Select your uploaded mission
  3. Click Play
The simulator shows:
  • 3D visualization of the flight path on terrain
  • Camera trigger points marked on the map
  • Estimated timing for each leg
  • Altitude profile along the route
  • Terrain clearance warnings if the flight path gets too close to the ground
This is not a physics simulation (use SITL for that). It is a geometric visualization that helps you verify your mission makes sense before committing a battery to it.

Tips for Better Surveys

Altitude matters. Lower altitude = higher resolution photos but more flight legs and longer mission time. 50m is a good balance for general mapping. 25-30m for detailed inspection. 80-100m for large area overview. Overlap is important. 75% front overlap and 65% side overlap is the starting point for photogrammetry. If your processing software struggles to stitch images, increase side overlap to 70-75%. Wind check. Survey missions fly at constant speed. Headwind legs are slower (use more battery). Tailwind legs are faster. Plan the grid angle perpendicular to the wind direction when possible, so wind is a crosswind on the survey legs. Battery budget. Plan for 70% of your battery capacity, not 100%. Keep 30% as margin for wind, unexpected maneuvers, and RTL. Check your estimated flight time against your battery’s known endurance.
