Ground dashboard: WFB Receive

Fields

The WFB Receive card carries a state badge (active, ready, connecting, error or disabled) and these rows:

Field	Shows
interface	the receive adapter
channel	the channel number and its frequency in MHz
rssi	received signal strength in dBm
snr	signal-to-noise ratio, when reported
noise	noise floor, when reported
bitrate	receive bitrate
packet loss	lost packets in percent: under 1% is normal, under 5% is a warning, higher is an error
FEC	`N ok · M fail`: blocks the forward error correction recovered and failed
restarts	receive pipeline restarts, once non-zero

Empty state

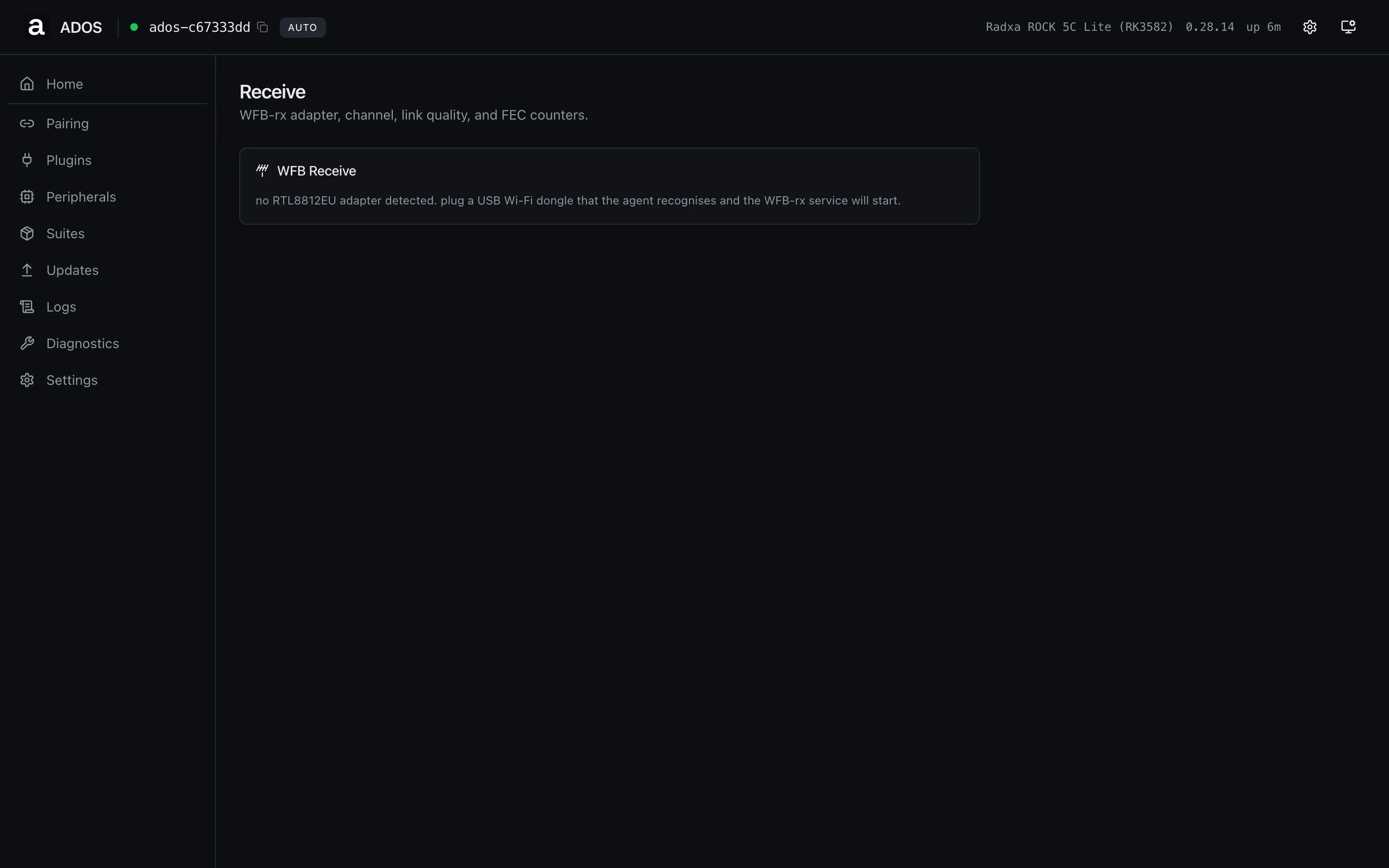

When the state is disabled, or error with no interface, the card reads “WFB-rx is not running. Plug in an RTL8812EU dongle and set the channel in Settings”. The agent starts the receive pipeline automatically when an adapter and a channel are both present. The dashboard’s Settings has no radio section; set the channel from Mission Control or see WFB-ng.

Packet loss stays high

Check the antennas and the distance to the drone, and compare rssi and snr. A rising FEC fail count means the link loses more than the error correction can repair. See Ground Agent troubleshooting.
