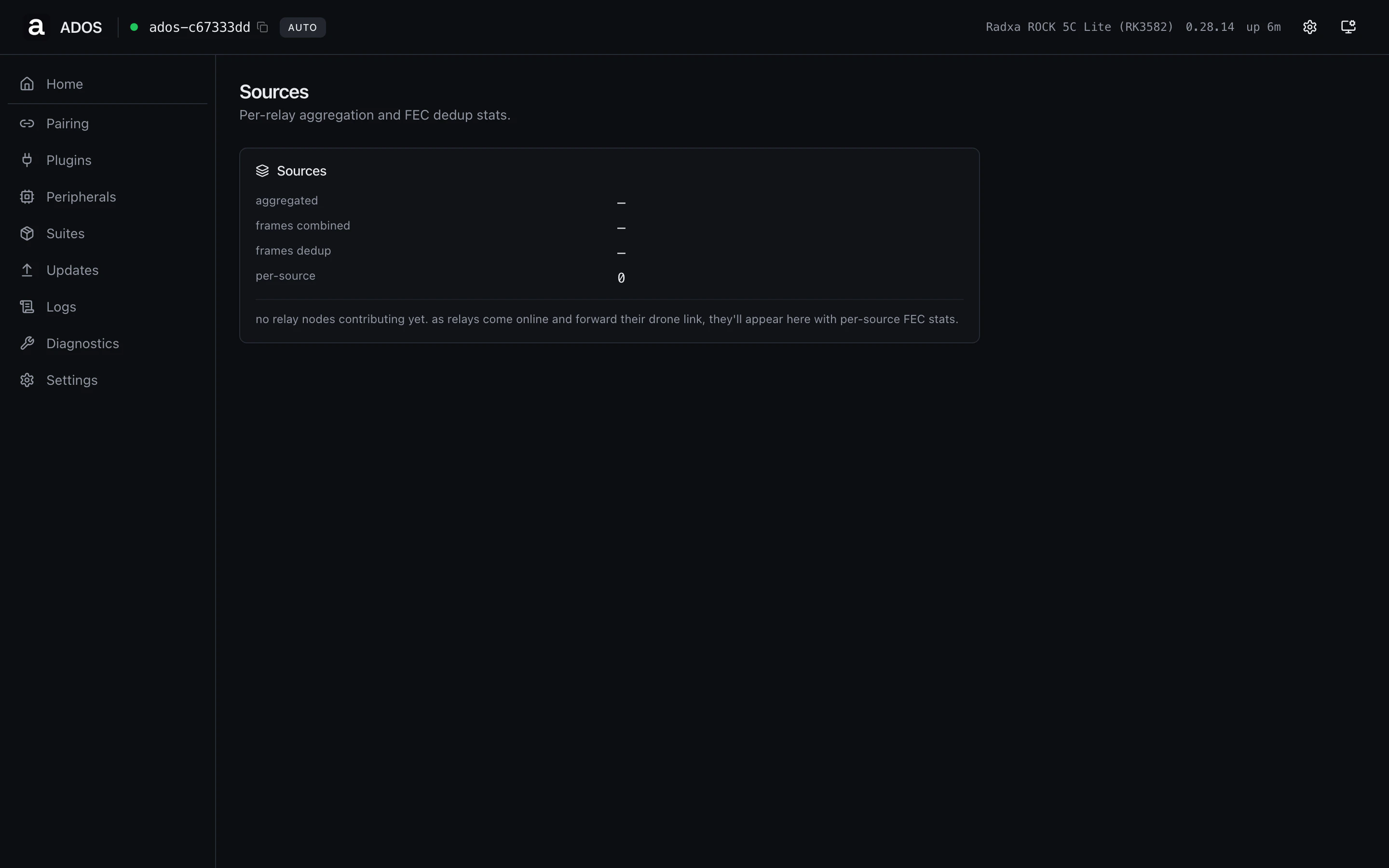

Sources
The Sources page is thereceiver role’s view into the streams flowing
from each relay node into this aggregator. It surfaces the bitrate and
frame counters per source, plus the combined downlink.
Fields
| Field | Meaning |
|---|---|
| Aggregated | Combined downlink bitrate across all relays. |
| Frames combined | Total frames successfully merged from multiple relays. |
| Frames dedup | Frames the receiver dropped as duplicates from a parallel relay. |
| Per-source | One row per relay node with its own bitrate and FEC counters. |
Role gating
The Sources page requires thereceiver role. On other roles the
sidebar entry is hidden and the URL renders the “Not available on this
profile” panel.
Backend endpoints
| Method | Path | Purpose |
|---|---|---|
| GET | /api/v1/dashboard/snapshot | Powers the panel (sources block) |
| GET | /api/v1/ground-station/wfb | WFB receiver config |
Troubleshooting
Per-source list is empty
Per-source list is empty
No relays are contributing. Confirm the relay nodes are up, on the
same channel, and reachable via mesh (see the Mesh page). The
receiver only counts relays that have completed the mesh handshake.
Frames dedup is rising fast
Frames dedup is rising fast
Two relays are duplicating the same air-side stream. This is expected
when both relays have line-of-sight to the drone; the dedup keeps the
downlink clean. If aggregated bitrate is also growing, the system is
healthy.
